Mutoh ValueJet 426UF
The ValueJet VJ-426UF is a compact A3+ flatbed 6-colour LED UV printer with integrated vacuum table. Offering a print table area of 483 mm (19”) x 329 mm (13”), the VJ-426UF enables direct printing onto objects up to 70 mm thick. The printer will deliver exceptional print quality on a wide variety of solid materials and objects including ABS, Alu-board, PC, PE, PET, PMMA (acrylic), PP, PS, PVC and glass.
An energy-efficient latest generation LED UV lamp ensures ultra-sharp, safe & ready to use prints. Its reduced working temperatures also allow printing onto heat sensitive substrates.
The multi-purpose VJ-426UF printer will produce ultra-sharp, high quality output and is specifically targeted at short run items or one-off designs of products and their prototypes, personalised gifts, packaging, souvenirs, awards, specialty industrial items as well as labels, decals, signs, etc..
Latest 1440 dpi Piezo Print Head
A revolutionary variable drop piezo print head is at the heart of the VJ-426UF. This 1440-nozzle head comprises four colour sections. Each colour section has 360 nozzles, or two 180 nozzle rows per colour. Because all colour sections are united in one head, there is no need for time-consuming head-to-head calibration routines. The print head is capable of producing ink drops ranging from 3.8 to 28 pl.
LED UV Inks for Ultra-sharp, Safe & Ready to Use Prints
Mutoh’s new LED UV CMYK + white inks & varnish are completely VOC-free and do not contain any hazardous air pollutants (non-HAP). Both flex and rigid inks are available.
An energy-efficient latest generation LED UV lamp ensures ultra-sharp, safe & ready to use prints. Its reduced working temperatures allow printing onto heat sensitive substrates. Compared to “classic” UV printing, Mutoh LED UV technology provides you all state-of-the-art health & safety and environmental benefits: no ozone generation, free of mercury and lead.
Maximize your Profit with Mutoh Intelligent Interweaving (i²) Print Technology
The ValueJet 426UF incorporates Mutoh’s award-winning Intelligent Interweaving (i²) print technology, enabling a drastic reduction or even total elimination of the typical difficulties inherent to conventional digital UV inkjet printing. Dedicated i² print effects for the Mutoh LED UV inks have been engineered, ensuring a drastic reduction of the curing structure in the ink layer and gloss banding suppression.
One of the biggest benefits of this proprietary Mutoh print technology is that it offers predictable and repeatable output quality, therefore bringing an unprecedented level of user comfort to the printer operator. ValueJet printer users will be able to print ideal quality images fit for purpose every time, in the shortest possible time.
Wide Choice of Media
The ValueJet VJ-426UF has an integrated vacuum table with electronically adjustable hold-down strength. With a print table area of 483 mm (19”) x 329 mm (13”), the VJ-426UF enables direct printing onto objects up to 70 mm thick. The printer will deliver exceptional print quality on a wide variety of solid materials and objects including ABS, Alu-board, PC, PE, PET, PMMA (acrylic), PP, PS, PVC, and glass.*
* : Ink adhesion will vary depending on substrate type and brand. Individual testing is required in function of your specific application.
Intelligent Design Features for Extra User Comfort
Next to the well-known ValueJet features enabling easy set up and usage of the unit, even by inexperienced operators, intelligent design features have been added for extra user comfort on the ValueJet 426UF.
- Easy to navigate display panel
- Mutoh printer installer & Windows driver
- Energy efficient LED UV lamp
- Integrated vacuum table
- i² print technology – offers predictable output quality, therefore bringing an unprecedented level of user comfort to the printer operator
ValueJet 426UF – Technical Key Specifications
Print Technology – Drop-on-demand Micro Piezo Inkjet Technology
Print Head – 1
Nozzle Configuration – 180 nozzles x 8 lines
Drop Mass Range (pl) – 3.8 to 28
LED UV lamp life – 14.250 hours
ValueJet 426UF – Media Specifications
Size Print Table – 483 mm (19″) x 329 mm (12,95”)
Max. Print Area – 473 mm (18,62”) x 319 mm (12,55″)
Max. Media Thickness – Up to 70 mm (2,75″)
Max. Media Weight – 4 kg
Media Drying System – Long life LED UV curing lamp
Vacuum System – Standard integrated – electronically adjustable hold-down strength

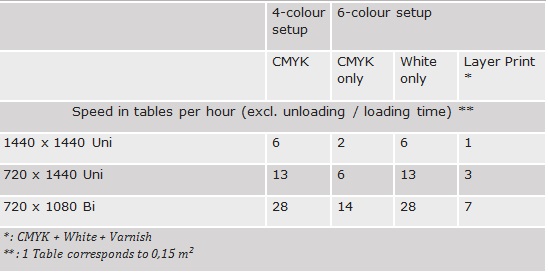

ValueJet 426UF – Performance
ValueJet 426UF – Ink Specifications
Ink Type – LED UV inks – Rigid and Flexible types
Ink Colours / Volume – CMYK & Varnish – 220 ml cassette
White – 220 ml cassette
Ink Setup – CMYK (CCMMYK)
CMYK + White + Varnish (CMYK+Wh+Va)
Ink Consumption * – 1.6 ml / table
* : Average ink consumption at @720 dpi – coverage of 67 %
Compatibility – ABS, Alu Board, Glass, PC, PE, PET, PMMA (acrylic), PP, PS, PVC, Tyvek® *
* : Ink adhesion will vary among media type and brand. Individual testing is required in function of your specific application.
ValueJet 426UF – Power Consumption
During Printing – < 330 Watt
Power Supply – AC 100-120 V / AC 200-240 – 60/50 Hz – ≤ 4.0 A / ≤ 2.0 A
ValueJet 426UF – Recommended Working Environment
Temperature – 22 °C – 32 °C with Δt: max. 2 °C/h
Humidity – 40% – 60 % (no condensation) with ΔRH: max. 5% RH/h
ValueJet 426UF – Machine Measurements
Width x Depth x Height – 1188 x 839 x 545 mm
Weight – 72 kg
