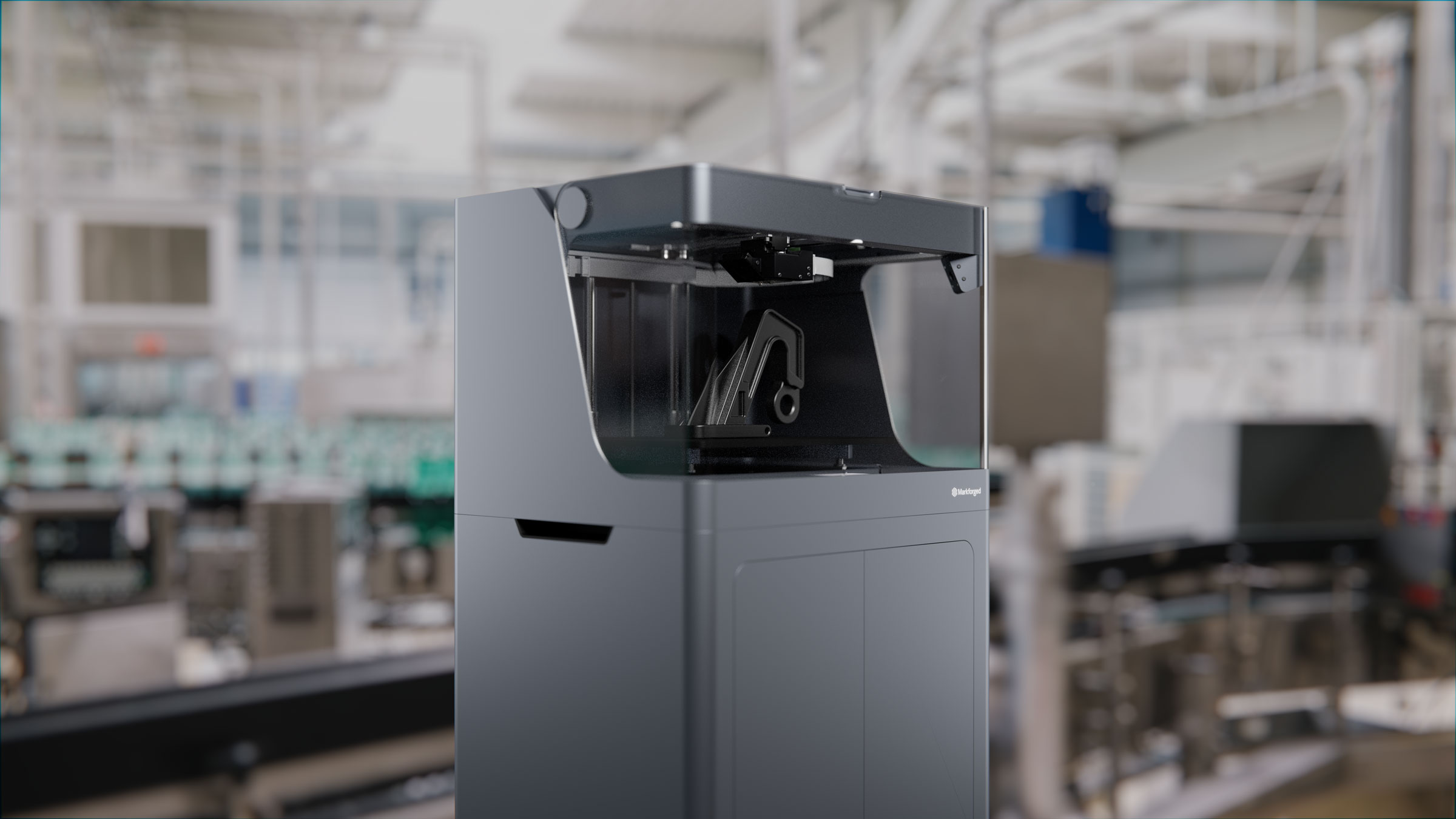

Markforged X3 – Industrial 3D Printer

The strength you need for tooling and functional parts. Designed for accuracy and built to survive the production floor environment, the X3 saves you time and money.

Features

1) Industrial Grade Printing

The strength you need for tooling and functional parts. Designed for accuracy and built to survive the production floor environment, the X3 saves you time and money.

2) Tough Parts

20% stronger and 40% stiffer than ABS. Resistant to impact and a wide variety of manufacturing chemicals. These heavy-duty parts stand up to abuse.

3) Unmatched Precision

Designed to just work. Fully instrumented with motor encoders and a laser micrometer. Exceptionally accurate, reliable and repeatable



4) Laser Precision

With a built-in laser micrometer, the X3 automatically scans the print bed with 1um accuracy to generate a contour map of its surface. By calibrating its measurements with extrusion readings to perfectly set nozzle height and active topography adjustment, the X3 ensures your prints come out exactly how you want them.

5) Powerful Software

With automatic version control, real-time fleet management and cloud-based collaboration, Eiger is the world’s most advanced 3D printing software. Designed from the ground up to make manufacturing simpler, Eiger enables you to print plastic, metal and composite parts straight from your browser.

6) Usability

Cloud-connected software and a 4.3” touchscreen comes standard with every printer, washer and furnace. Regular over-the-air updates mean that your Markforged products keep getting better. Material usage tracking and out-of-material detection help monitor your printers and reduce waste. Just a few of the ways we’re working to reduce the distance from design to part.

Markforged Mark Two Enterprise

  • Prototyping
  • Jigs & Fixtures
  • Excellent Print Quality
  • End-Use Parts ready to be used.
  • Large Build Volume Parts

The Markforged X3 Composite 3D Printer Specifications:

Printing Technology: Fused Filament Fabrication (FFF) Continuous Filament Fabrication (CFF)

Maximum Build Volume (XxYxZ): 330mm x 270mm x 200mm

Material Compability:  Onyx

Highest Layer Resolution: 50 Microns (FFF) (Z Resolution)

Extruders / Nozzles: Dual / Quick Change

Pause / Resume Prints: Yes

Mechanical

Chassis: Anodized Aluminum Unibody

Build Platform: Kinematically Coupled

Footprint (X,Y,Z) : 584mm x 483mm x 914mm

Draft Blocking Enclosure: Yes

Interface: 4.3” Touchscreen

Software

Software: Cloud Based

Supported OS: Mac OS 10.7 Lion +, Win 7+, Linux*

Supported Files: .STL

Connectivity:  WiFi, Ethernet, USB Flash Drive

ALL FEATURES SUBJECT TO CHANGE WITHOUT NOTICE.
*LIMITED SUPPORT
